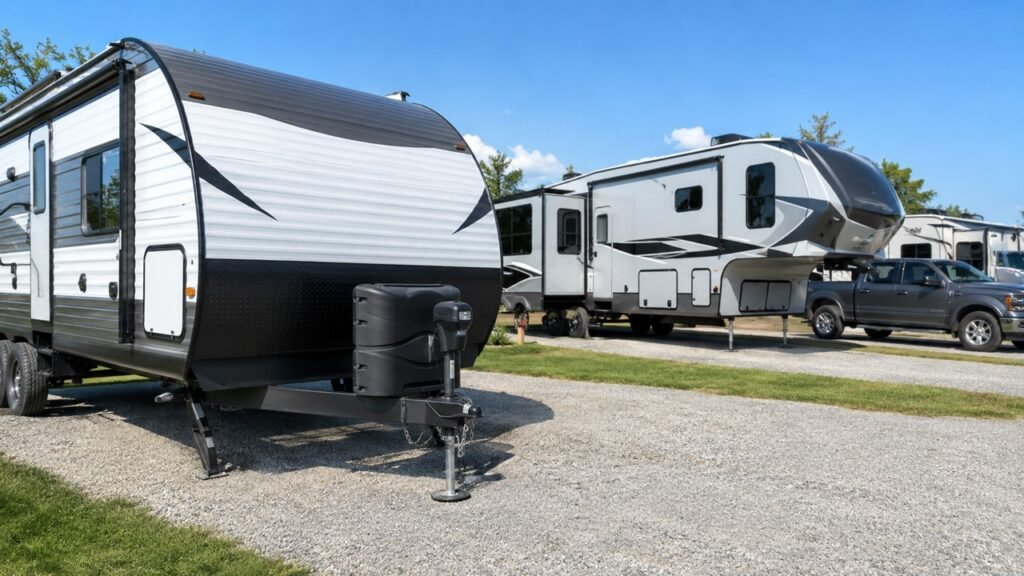

A trailer jack that clicks but does not move usually has a weak power supply, poor electrical connection, overloaded motor, or jammed lifting mechanism. Rapid clicking often points to low voltage, while one solid click may indicate a failed switch, relay, solenoid, motor, or internal mechanical problem.
This guide will help you identify the sound, check the electrical system, inspect possible mechanical failures, use the manual override, and decide whether the jack should be repaired or replaced.
Key Takeaways
- Rapid clicking commonly means the battery voltage is too low.
- One loud click may indicate a faulty relay, solenoid, switch, or motor.
- Loose terminals, corrosion, and poor grounding can restrict motor current.
- A jack may click when overloaded or operated at its travel limit.
- Stripped gears or a broken drive pin can stop the leg from moving.
- The manual override can help separate electrical and mechanical problems.
- Always support the trailer securely before inspecting or repairing the jack.
What Does a Clicking Trailer Jack Usually Mean?
The clicking pattern can give you an early clue about what is wrong. It will not identify the failed part with complete certainty, but it can help you decide where to begin troubleshooting.
| Clicking Pattern or Symptom | Possible Cause | What to Check First |
| Rapid repeated clicking | Weak battery, voltage drop, loose terminal, or poor ground | Battery voltage and connections |
| One loud click with no motor sound | Faulty relay, solenoid, switch, motor, or seized mechanism | Power reaching the motor |
| Clicking with humming | Overload, mechanical jam, or seized screw | Jack load and manual override |
| Motor runs but leg does not move | Stripped gears, broken pin, or gearbox damage | Internal drive components |
| Jack clicks only while lifting | Weak battery, excessive load, or internal binding | Voltage under load and tongue weight |
| Light works but jack only clicks | Battery can power the light but not the motor | Battery condition and cable resistance |
| Hydraulic jack makes one solid click | Failed solenoid, pump motor, or power connection | Pump wiring and solenoid |
Pay attention to whether the clicking is rapid, occasional, or limited to one direction. You should also notice whether the motor hums, runs normally, becomes hot, or remains completely silent.
These details can prevent you from replacing a motor when the real problem is something simple, such as a loose battery terminal.
Safety Steps Before Troubleshooting the Jack
A trailer jack supports a significant amount of weight. Before touching the wiring or attempting manual operation, make sure the trailer cannot roll, shift, or fall.
- Park the trailer on firm, level ground whenever possible.
- Chock the wheels on both sides.
- Keep the trailer connected to the tow vehicle when practical.
- Use properly rated jack stands or solid supports.
- Never crawl beneath a trailer supported only by the tongue jack.
- Keep your hands away from gears, tubes, and pinch points.
- Disconnect battery power before opening the motor or gearbox.
- Stop operating the switch if wires become hot.
- Do not continue replacing fuses without finding the cause.
If the jack is currently carrying the trailer and you are unsure how to support it safely, call a trailer technician or roadside service provider.
Check the Trailer Battery First
The trailer battery is the best place to begin because an electric jack needs a large amount of current. A battery may still power interior lights or the jack’s LED light while being too weak to operate the motor.
Test the Battery at Rest
Use a multimeter to check the voltage directly across the battery terminals.
A fully charged 12-volt lead-acid battery will often read around 12.6 volts while resting. A reading closer to 12 volts may indicate a significantly discharged battery.
However, resting voltage does not tell you everything. A damaged or aging battery may show an acceptable voltage until the jack motor begins drawing current.
Battery type, temperature, charger status, and recent use can affect the reading. Follow the battery manufacturer’s specifications when interpreting the result.
Test the Battery While Operating the Jack
Keep the multimeter connected while someone presses the jack switch.
If the voltage drops sharply when the jack clicks, the battery may be weak or there may be excessive resistance somewhere in the circuit.
This is called a load test. It is more useful than checking voltage while nothing is running because it shows how the electrical system behaves under actual demand.
A large voltage drop can be caused by:
- A discharged battery
- An internally failing battery
- Loose battery terminals
- Corroded cable ends
- A poor ground connection
- Damaged or undersized wiring
Charge or Replace a Weak Battery
Charge the battery fully using a compatible charger, then test the jack again.
If the battery quickly loses voltage under load after charging, it may need replacement. An automotive or battery shop can usually perform a more complete battery test.
Do not assume the converter or tow vehicle has fully charged the trailer battery. A damaged charge wire, blown fuse, faulty converter, or disconnected battery switch may prevent proper charging.
Inspect the Battery Terminals, Ground, and Power Cable
Trailer jack motors are sensitive to electrical resistance. A small amount of corrosion may not stop a light from working, but it can prevent enough current from reaching the motor.
Clean the Battery Terminals
Inspect both battery terminals for loose hardware, white powder, green corrosion, dirt, or damaged cable ends.
Disconnect the battery according to the manufacturer’s instructions before cleaning the terminals. Normally, the negative cable is removed first and reconnected last.
Clean the contact surfaces, tighten the hardware securely, and replace damaged ring terminals or cables.
Do not simply tighten a badly corroded terminal. Corrosion can remain between the metal surfaces and continue restricting current.
Check the Jack Ground Connection
Some electric jacks use a dedicated negative wire connected to the battery or trailer frame. Others may depend partly on their mounting hardware for grounding.
Inspect:
- The jack’s negative wire
- The battery negative cable
- Frame-ground connections
- Mounting bolts
- Rust around the mounting plate
- Paint between grounding surfaces
- Loose or damaged connectors
A ground connection may look secure while still having enough corrosion to cause a voltage drop.
You can test the ground circuit with a multimeter, but voltage-drop testing is often more useful than a basic continuity test. A wire can show continuity while failing to carry enough current for the motor.
Inspect the Positive Power Wire
Follow the jack’s positive wire from the motor housing toward the battery.
Look for:
- Frayed insulation
- Pinched wiring
- Loose ring terminals
- Heat damage
- Melted connectors
- Corrosion inside the fuse holder
- Splices exposed to moisture
- Wires rubbing against the trailer frame
Gently move the cable while operating the switch. If the jack works intermittently, a connector or wire may be broken internally.
Do not bypass damaged wiring with a smaller wire or temporary household connector. Electric jack motors draw substantial current and require correctly sized automotive or trailer wiring.
Check the Fuse and Circuit Breaker
Most electric trailer jacks have an inline fuse or circuit breaker installed near the battery. Its purpose is to protect the wiring and motor when current becomes excessive.
Open the fuse holder and inspect the fuse carefully. A fuse may look intact even when it has failed, so test it with a multimeter or replace it with an identical known-good fuse.
Some trailers use a manual-reset circuit breaker. Others use an automatic-reset breaker that may click repeatedly as it opens, cools, and reconnects.
An auto-reset breaker can create a clicking sound when:
- The motor is overloaded
- The jack is mechanically jammed
- The wiring is shorted
- The motor has an internal fault
- The breaker itself is failing
Never replace a fuse or breaker with a higher rating unless the jack manufacturer specifically requires it. A larger fuse may allow the wiring or motor to overheat before protection activates.
If a replacement fuse blows immediately, stop operating the jack and find the electrical or mechanical cause.
Electrical Parts That Can Click but Prevent Movement
If the battery, wiring, ground, fuse, and breaker are in good condition, the clicking may come from a control component inside the jack or hydraulic power unit.
Faulty Up-and-Down Switch
The directional switch controls whether the motor raises or lowers the jack.
Moisture, corrosion, worn contacts, or internal damage can prevent the switch from passing enough current. The switch may still produce a click even though the motor does not receive full power.
A switch problem is more likely when:
- The jack works in one direction only.
- Moving the switch changes the symptom.
- The switch feels loose or sticky.
- Water has entered the control housing.
- The jack operates intermittently.
Replacing the switch may solve the problem, but test the wiring and motor before assuming the switch is responsible.
Failed Relay or Solenoid
Some jacks use relays or solenoids to handle motor current. When you press the switch, the relay may click as its internal contacts move.
The click only confirms that the relay coil is activating. It does not prove that the internal contacts are successfully delivering current to the motor.
Burned or corroded contacts may create enough resistance to stop the motor under load.
A technician can test voltage on both sides of the relay while the switch is pressed. This helps determine whether power enters the relay but fails to leave it.
Damaged or Overheated Motor
The motor itself may click, hum, or remain silent when it fails.
Common motor problems include:
- Worn brushes
- Damaged windings
- Water intrusion
- Internal corrosion
- Seized bearings
- Overheating
- Burned electrical connections
Electric jack motors are often protected by thermal overload devices. If you repeatedly operate the jack or try to lift too much weight, the motor may shut down temporarily.
Allow it to cool before testing again. If the jack repeatedly overheats during normal use, something is wrong with the motor, wiring, load, or lifting mechanism.
Intermittent Wiring Connection
Trailer movement and vibration can loosen connectors or break wires internally.
An intermittent connection may cause the jack to:
- Work only occasionally
- Click when the cable moves
- Stop halfway through travel
- Work in one direction but not the other
- Operate when connected to the tow vehicle
- Fail after rain or washing
Inspect every connection rather than focusing only on the battery terminals.
Mechanical Reasons a Trailer Jack Clicks but Does Not Move
A strong electrical system cannot move a jack that is overloaded, jammed, bent, or internally damaged. Mechanical resistance also increases motor current, which may cause the relay or breaker to click.
The Jack Is Carrying Too Much Weight
Trailer jack ratings describe how much weight the jack can safely lift or support. The jack does not normally lift the trailer’s entire gross weight, but it must handle the actual tongue or pin weight placed on it.
The load can become excessive when:
- Cargo is concentrated near the front.
- The trailer is parked on a steep slope.
- The jack is used to lift part of the tow vehicle.
- Stabilizer jacks or landing gear are binding.
- The jack is undersized for the trailer.
- The trailer has been modified or heavily loaded.
If the jack clicks only while lifting but lowers normally, overloading is one possible cause.
Do not repeatedly press the switch in an attempt to force the jack upward. This can damage the motor, fuse, breaker, gears, or screw mechanism.
The Jack Is Fully Extended or Retracted
Many electric tongue jacks do not have automatic limit switches.
If you continue pressing the switch after the jack reaches the end of its travel, the screw mechanism can bind tightly against the internal stop. The motor may then click or hum without moving.
Try the manual override gently in the opposite direction. Do not apply excessive force because the jack may already have damaged gears or threads.
Marking the maximum safe extension on the inner tube can help prevent this problem in the future.
The Internal Screw Is Jammed or Seized
Electric tongue jacks commonly use a screw-driven lifting mechanism. Rust, dried grease, dirt, damaged threads, or long periods without use can make the screw difficult to turn.
A seized screw often causes:
- Clicking under load
- Slow or jerky movement
- Humming from the motor
- High current draw
- Repeated breaker operation
- Excessive resistance during manual cranking
If the manual crank will not move the jack with reasonable effort, stop forcing it. The screw, nut, tube, or gearbox may be damaged.
The Gears Are Stripped
The motor usually transfers power through a set of gears. Some models use metal gears, while others may contain composite components.
Repeated overloading, lack of lubrication, impact damage, or operating against the travel stop can strip gear teeth.
Signs of stripped gears include:
- The motor runs but the leg remains still.
- You hear grinding or slipping.
- The jack moves only occasionally.
- The motor spins unusually fast.
- Manual operation feels disconnected.
- Metal or plastic fragments appear inside the housing.
Some manufacturers sell replacement gear kits. On other jacks, replacing the complete motor or jack assembly may be more practical.
The Drive Pin Has Sheared
A roll pin, shear pin, or similar connector may link the gearbox to the lifting screw.
If this pin breaks, the motor and gears can turn without rotating the screw. You may hear the motor or gearbox operating while the jack leg does not move.
A replacement pin must match the manufacturer’s specifications. Installing a harder or larger improvised pin can transfer excessive force to more expensive internal parts.
The Inner Tube Is Bent or Misaligned
A trailer jack is designed to carry a mostly vertical load. Side pressure can bend or misalign the inner tube.
This may happen when:
- The trailer rolls while the jack is extended.
- The tow vehicle pulls away too soon.
- The jack foot sinks into soft ground.
- The coupler pushes sideways against the jack.
- The jack strikes a curb or obstacle.
- The mounting bracket is bent.
A bent tube may move partway before binding. It may also scrape, jerk, or require excessive manual force.
Replacing a bent jack is usually safer than attempting to straighten it.
How to Troubleshoot a Clicking Trailer Jack Step by Step
Follow a logical order so you do not disassemble the jack before checking the simpler causes.
- Park on firm ground and chock the trailer wheels.
- Support the trailer with properly rated equipment.
- Confirm whether the jack is electric screw-driven or hydraulic.
- Make sure the trailer battery disconnect switch is on.
- Check the battery voltage at rest.
- Test the voltage while pressing the jack switch.
- Charge or replace the battery when needed.
- Clean and tighten both battery terminals.
- Inspect the jack’s ground connection.
- Inspect the positive cable for damage or corrosion.
- Check the inline fuse and circuit breaker.
- Listen for rapid clicking, one solid click, humming, or motor operation.
- Reduce the jack load safely when possible.
- Check whether the jack is at its travel limit.
- Attempt the manual override using the manufacturer’s procedure.
- Stop if the jack is severely bound or difficult to crank.
- Test the switch, relay, solenoid, and motor if power is reaching the jack.
- Inspect the gears and drive pin only after disconnecting electrical power.
- Replace the jack if the tube, screw, housing, or wiring is badly damaged.
This order starts with the most common and least expensive problems before moving toward internal repair.
Why Does the Jack Click Only While Lifting?
Lifting requires more motor torque than lowering. Gravity helps the jack retract under some conditions, but the motor must work harder to raise the trailer.
A jack that lowers normally but clicks while lifting may have a weak battery, poor electrical connection, excessive tongue weight, worn motor, dry lifting screw, or damaged gears.
The motor may also be receiving nearly enough power to operate without a load but not enough to lift the trailer.
Do not assume the jack is healthy simply because it moves when the trailer weight is removed. A motor, battery, or connection can work under light demand and fail under normal load.
Why Does the Jack Work in One Direction but Not the Other?
A jack that moves up but not down, or down but not up, often has a directional switch or wiring problem.
The switch reverses motor polarity to change direction. One set of internal contacts may be burned or corroded while the other remains functional.
Other possible causes include:
- A faulty relay
- A loose directional wire
- A broken connection
- Binding at one travel limit
- Damaged gears
- A bent tube
- Internal motor problems
Do not reverse wires randomly to test the motor. Incorrect connections can damage the jack or create a short circuit. Follow the wiring diagram supplied by the manufacturer.
Why Does the Light Work but the Jack Only Click?
The light on an electric tongue jack requires very little power compared with the motor.
A weak battery or corroded connection may still supply enough current for the light while failing as soon as the motor attempts to lift the trailer.
This symptom commonly points to:
- Low battery charge
- A failing battery
- Corroded battery terminals
- A poor frame ground
- Damaged power wiring
- A faulty relay
- A worn motor
Test voltage while pressing the switch rather than using the light as proof that the battery is good.
What to Check on a Hydraulic Trailer Jack
Hydraulic trailer jacks use a pump, motor, solenoid, valves, fluid, hoses, and cylinders. A solid click may indicate that the solenoid is activating without successfully running the pump.
Weak Battery or Poor Pump Connection
A hydraulic pump motor can draw a large amount of current.
Check the battery, cable size, terminal condition, ground connection, fuse, and breaker before opening the hydraulic system.
A weak connection may allow the solenoid to click while preventing the pump motor from turning.
Clicking Solenoid With a Silent Pump
The solenoid acts as a high-current electrical switch.
If it clicks but the pump remains silent, possible causes include:
- Burned solenoid contacts
- Low voltage
- A loose motor cable
- Poor grounding
- A failed pump motor
- A seized pump
- A damaged control switch
Testing the voltage at the motor while activating the jack can help separate a solenoid problem from a motor problem.
Failed Hydraulic Pump Motor
A failed pump motor may click, hum, overheat, or remain silent.
The motor may have worn brushes, internal corrosion, damaged windings, or seized bearings. Some pump units allow motor replacement, while others are replaced as complete assemblies.
Low Fluid, Air, or Valve Problems
If the pump runs but the jack does not move properly, the problem may be hydraulic rather than electrical.
Possible causes include:
- Low hydraulic fluid
- Air trapped in the system
- A stuck valve
- Contaminated fluid
- A leaking cylinder seal
- Internal valve leakage
- A damaged pump
Use only the hydraulic fluid specified by the manufacturer. Mixing fluids or using an incorrect viscosity may damage seals or change system performance.
Manual Release or T-Valve Problems
Some hydraulic systems have a manual release valve or T-valve that allows emergency retraction.
Opening this valve can cause the jack or landing gear to move under the trailer’s weight. Secure the trailer before touching it.
Follow the exact manufacturer procedure. Do not loosen random fittings or hydraulic hoses to release pressure.
How to Use the Trailer Jack’s Manual Override
Many electric tongue jacks include a rubber or plastic access cap on top of the motor housing. Removing the cap exposes a manual drive point for the supplied crank handle or an approved socket.
Before using it:
- Chock the wheels.
- Support the trailer securely.
- Turn off the jack power.
- Use the correct crank or socket.
- Turn slowly.
- Keep hands clear of pinch points.
- Stop if resistance becomes excessive.
The manual override is also a useful diagnostic tool.
If the jack turns smoothly by hand, the problem is more likely electrical or motor-related. If the jack is difficult or impossible to turn, the screw, gears, tube, or internal lifting nut may be jammed or damaged.
Do not immediately use an impact wrench. High-speed or impact operation can damage gears, shear pins, or overheat the mechanism. Only use a drill or power tool when the jack manufacturer specifically permits it.
Can Lubrication Fix a Clicking Trailer Jack?
Lubrication can help when the jack is dry, stiff, or beginning to bind. However, it cannot repair a burned motor, stripped gear, broken drive pin, bent tube, or failed relay.
Lubrication points may include:
- The exposed inner tube
- The lifting screw
- Gear teeth
- Pivot points
- Bushings
- Manufacturer-provided grease fittings
Use only the lubricant recommended for your jack. Some manufacturers specify grease, while others recommend a dry lubricant or a particular maintenance procedure.
Avoid spraying general-purpose penetrating oil into the motor, switches, sealed gearbox, or electrical connectors. Excess oil can attract dirt, damage certain materials, or contaminate electrical contacts.
If the jack is already severely jammed, adding lubricant from the outside may not reach the failed component.
Should You Repair or Replace the Trailer Jack?
Minor electrical problems are often inexpensive to repair. Serious structural or internal damage may make complete replacement safer and more cost-effective.
Repair may make sense when:
- The battery connection is loose or corroded.
- A fuse or breaker has failed.
- The switch is replaceable.
- A damaged connector can be repaired properly.
- The manufacturer sells a compatible motor kit.
- A replacement gear set is available.
- The housing and jack tubes remain straight.
- The jack is still covered by warranty.
Replacement may be the better choice when:
- The inner or outer tube is bent.
- The screw mechanism is badly rusted.
- The gearbox housing is cracked.
- The wiring has melted.
- The motor has repeatedly overheated.
- The jack has been severely overloaded.
- Multiple internal parts are damaged.
- Replacement parts are unavailable.
- Repair costs approach the price of a new jack.
- The existing jack is undersized for the trailer.
When replacing the jack, choose one with an appropriate lift capacity, mounting pattern, travel range, electrical requirements, and clearance for your trailer.
Do not select a replacement based only on the trailer’s total weight. Confirm the actual tongue or pin weight and follow the trailer and jack manufacturers’ recommendations.
When Should You Call a Trailer Technician?
Call a professional when you cannot support the trailer safely or when troubleshooting involves high-current wiring, hydraulic pressure, internal motor repair, or a severely jammed lifting mechanism.
Professional help is also recommended when:
- The fuse repeatedly blows.
- The circuit breaker continues clicking.
- Wiring becomes hot.
- You smell burning insulation.
- The jack housing is cracked.
- Hydraulic fluid is leaking.
- The tube is bent.
- The manual override will not turn.
- The trailer is stranded in an unsafe location.
- The jack is still under warranty.
Opening a sealed motor, gearbox, or hydraulic power unit may affect warranty coverage. Check the warranty terms before disassembling the jack.
How to Prevent Your Trailer Jack From Clicking Again
Basic maintenance can reduce voltage problems, corrosion, overloading, and internal wear.
- Keep the trailer battery fully charged.
- Test the battery before long trips.
- Clean and protect battery terminals.
- Check frame grounds regularly.
- Inspect the power wire and fuse holder.
- Repair damaged weather covers.
- Lubricate only the approved service points.
- Avoid holding the switch at full extension.
- Do not exceed the jack’s rated capacity.
- Keep sideways pressure off the jack tube.
- Use a solid jack pad on soft ground.
- Retract the jack fully before towing.
- Keep the jack covered during storage when appropriate.
- Operate the jack periodically during long storage.
- Allow the motor to cool between repeated cycles.
- Address slow or jerky movement before the jack stops completely.
A jack that begins moving slower than normal is often giving you an early warning. Checking the battery, connections, and lubrication at that point may prevent a complete failure later.
Final Thoughts
A trailer jack that clicks but does not move is often dealing with low battery voltage, corrosion, a poor ground, or another power-delivery problem. Start with the battery and connections before replacing the switch, relay, solenoid, or motor.
If strong power reaches the jack but the leg remains still, check for overloading, full extension, a seized screw, stripped gears, a broken drive pin, or a bent tube. Support the trailer safely, use the manual override carefully, and stop operating the jack if it overheats, binds, or repeatedly blows its fuse.
Related FAQs
Why Does My Trailer Jack Light Work but Not the Motor?
The light requires very little electrical current, while the motor needs much more. A weak battery, corroded terminal, poor ground, damaged cable, faulty relay, or failing motor may allow the light to work while the jack only clicks.
Can a Weak Trailer Battery Make the Jack Click?
Yes. A weak trailer battery can cause rapid clicking because voltage drops when the motor attempts to start. The relay or circuit breaker may repeatedly engage and release without supplying enough power to move the jack.
Why Does My Trailer Jack Work When Connected to My Truck?
The trailer battery may be discharged, disconnected, damaged, or failing to charge correctly. Power coming through the tow vehicle connection may provide enough additional voltage for the jack to operate.
How Do I Know if My Trailer Jack Gears Are Stripped?
Stripped gears may cause the motor to run, spin, grind, or click while the jack leg remains still. You may also notice slipping, irregular movement, or little resistance during manual operation.
Can I Raise an Electric Trailer Jack Manually?
Most electric trailer jacks have a manual override that uses a supplied crank handle or approved socket. Secure the trailer, disconnect electrical power, and follow the jack manufacturer’s instructions before operating it manually.
Why Does My Trailer Jack Click in Only One Direction?
A jack that clicks in one direction may have a damaged directional switch, faulty relay contact, loose wire, travel-limit bind, or internal mechanical problem affecting that direction.
Can Cold Weather Make a Trailer Jack Click?
Yes. Cold weather can reduce battery output and make grease thicker, increasing the current needed to move the jack. A battery or connection that works in warm conditions may struggle when temperatures fall.
Can I Use a Drill on the Manual Override?
Some manufacturers allow a low-speed drill with the correct socket, but others recommend using only the supplied hand crank. Avoid impact tools unless the manufacturer specifically approves them because they can damage gears or drive pins.
Why Does My Trailer Jack Click After Reaching the Top?
The jack may have reached its maximum travel and become bound against the internal stop. Release the switch immediately and use the manual override gently in the opposite direction if the manufacturer permits it.
Why Does My Trailer Jack Keep Blowing Fuses?
Repeatedly blown fuses can indicate a short circuit, overloaded motor, seized lifting screw, damaged wiring, incorrect fuse size, or internal motor failure. Do not keep replacing the fuse without finding the cause.
Michael Carter is an experienced RV traveler who focuses on practical outdoor trips across the States. He writes clear, step-by-step guides and realistic reviews based on real travel needs. His aim is to help RV and camper owners plan informed, simpler journeys with confidence.
